Price: $69.99
(as of Mar 08, 2024 22:28:29 UTC – Details)
Product Description
VECLESUS VM1 car wired backup camera system – Ensure safe driving!
Warm Tips
Please check the functionality of the VM1 with its all accessories before installation.The length of original cable for rear camera is (10M)33 feet, suitable for most car models.Please use original accessories provided in the package, just in case of compatible issues after using others.Please confirm whether your cigar power port is ACC. (if the cigarette lighter is still charged after the car is turned off, please use the hardwire kit or unplug the car charger after the car is turned off, otherwise it may exhaust your car’s power supply. )(Note: This happens in some Ford/Audi cars, and electric cars).
FAQ:
1. Is my car suitable for installing VM1?
The VM1’s monitor adopts Universal Installation design, you can mount the monitor on the windshield or on the dashboard as you need. The VM1 is equipped with a 33 feet(10 meters) extension video cable, it enough for most car models.
2. I don’t know how to install this product.
If you don’t know how to install it, we recommend you find a professional. If you want to challenge yourself, you can refer to our installation instructions and videos to install it by yourself. Any problems during installation can be solved by contacting the VECLESUS service email, wish you success!
3. Why blue or black screen?
Please check whether the voltage is between +9~24V, and confirm whether the extension cable is connected incorrectly. The end of the extension cable with the word “Monitor” must be connected to the monitor, the other end with the word “Camera” must be connected to the camera, and the Pins of the connector need to be aligned before they are connected.
4. How to make the monitor on only when reverse ?
If the system is only used for reversing, at first, the green reverse wire must be connected to the positive pole of the reversing light to realize the reversing trigger function, and the voltage must be between +9~24V, then long press the “M” button on the back of the monitor to close the display, so that when reversing, the monitor will automatically light up. If the system is used for continuous viewing, please ignore this wire.
5, Why is the monitor signal intermittent or flashing?
It may be installed on some German car models (Volkswagen, Audi, BMW), the display will appear signal interruption or flash screen, just set the reverse delay setting to 2 seconds, you can solve this problem

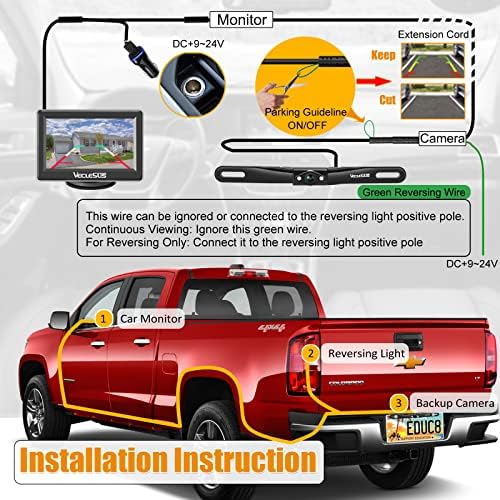

Installation Diagram
Installation Instrutions:
Monitor:
1) Remove the screen protector.2) Mount the monitor on the windshield or on the dashboard as you need.3) Connect the car charger power cable and extension cable(the end that with word “monitor”).
Camera:
1) Remove the original screws of the license plate.2) Install the camera to the license plate and adjust the camera angle by multi-purpose screwdriver.3) Connect the camera to the extension cable (the end that with word “camera”).
Wire Connections:
1) Use the plastic crowbar to make the wire easy to be plugged in the gap.2) Connect the green reversing wire to the positive terminal of the reversing light (Note: if you need to keep a continuous observation, just ignore this wire).3) Different models have different routes to connect the green reversing wire to the reversing light, we recommend that you search YouTube videos on how to install a reversing camera on your car model to refer to the installation method.
NOTE: For more usage questions or accessories needed, please check the manual or consult us.
Use Details
Parking Guideline Adjustable
►Camera parking guideline. There is a green coil on the tail wire of the camera. Cut it and the camera guideline will turn off, keep it and the camera guideline will turn on.
►Monitor parking guideline adjustable: Press the “M” button on the back of the monitor when reversing, a total of 6 different sizes of parking guideline are available for selection, used to meet the needs of different vehicles.
Camera Viewing Angle Adjustable
►Up to 150 degrees camera viewing angle for a complete view of the rear of the car.
►The camera can be adjusted up and down with a multi-purpose screwdriver we provided to get the best view for the height of your vehicle.
Multiple Power Supply Modes
►Comes with a car charger and a fuse box power cable, you can choose powered by cigarette lighter or fuse box with a hidden installation.
►Fuse box power cord connection: Red to ACC +9~24V, black to GND.
►The car charger is designed with an additional USB port(output 1-2A,5V), it not only supply power for system, but also can charge for other devices.
Multi Functions to Ensure Your Driving Safety
Enhanced Night Vision
►Equipped with advanced analogy high definition (AHD technology), the 1080P HD backup camera can automatically balance the light and dark area of the video to give you a better night vision experience.
Easy Installation
►Dual purpose suction cup monitor bracket design, it is suitable for all cars.
►Smaller and stronger 0.28″ (7mm) diameter connector design no-drilling installation for most 90% car models.
►33 feet (10M) extension cable is sufficient for most vehicle installations.
HD and Universal Monitor Design
►Anti-shake bracket to avoid the monitor shaking when your car is running.
►4.3″ IPS HD monitor screen, provides unobstructed field of vision and vivid video.
►One-button control of the monitor On/Off, can be set to reverse viewing or continuous viewing.
Package Contents
4.3 Inches Car Monitor1080P Car Backup Camera33 Feet Extension Video CordDual Purpose Suction Cup BracketMulti-purpose ScrewdriverStraps and Clips & User ManualCar ChargerPlastic CrowbarInstalltion AccessoriesPower Cable
Why Choose VECLESUS VM1 Backup Camera System?
The VM1 car wired backup camera system with its easy installation and versatility, can provides you with reliable and safe information when driving and reverse.
►Easy installation
►Easy routing wire
►Colorful Super night vision
►IP68 waterproof rating
►True 1080P HD car backup camera
►Continuous or reversing observation selectable
►Drilling-free design with smaller size connectors for 90% Car Models
►Online installation support via consult VECLESUS Service Email
Wireless or Wired
Wireless Wired Wired Wired Wired Wired
Night Vision
Infrared Night Vision Infrared Night Vision Infrared Night Vision Infrared Night Vision Infrared Night Vision Infrared Night Vision
Monitor Mount Position
Dashboard or windshield Dashboard or windshield Dashboard or windshield Dashboard or windshield Dashboard or windshield Dashboard or windshield
Monitor Size
4.3〞 LCD 4.3〞 LCD 4.3〞 LCD 4.3〞 LCD 4.3〞 LCD 7〞 LCD
Adjustable Parking Lines
✓
✓
✓
✓
✓
✓
Mirror/Normal Image Option
✓
✓
✓
✓
✓
✓
Waterproof Rating
IP68 IP68 IP68 IP68 IP68 IP68
The Length of Extension Cable
33FT 33FT 16.4FT 33FT 16.4FT 66FT
Supports Several Video Inputs
1 1 1 1 1 2
